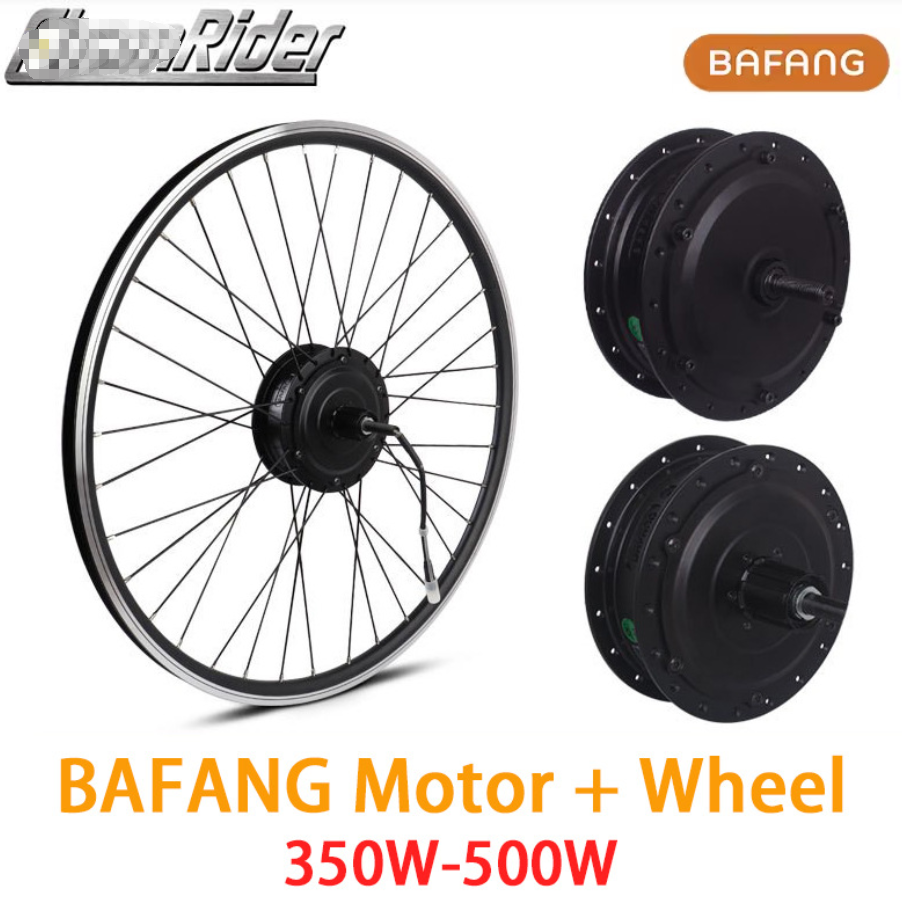

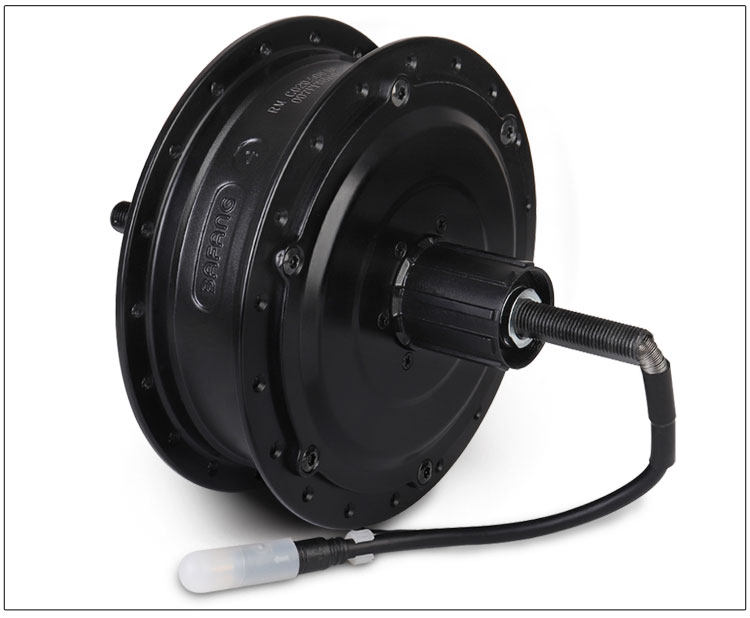

Bafang Gear Motor ebike kit Mountain Bike Electric Kit 500W

$399.00 USD

Sale Sold out

Option Mid-drive motor 48V 350W Freewheel 48V 500W Front hub motor Mid-drive motor 48V 500W Freewheel Rear hub motor 48V500W Freehub Mid-drive motor system 48V 350W Freewheel Front motorized wheel 48V 500W Front Mid-drive motor system 48V 500W Freewheel Rear hub motor wheel 48V500W Freehub

Quantity

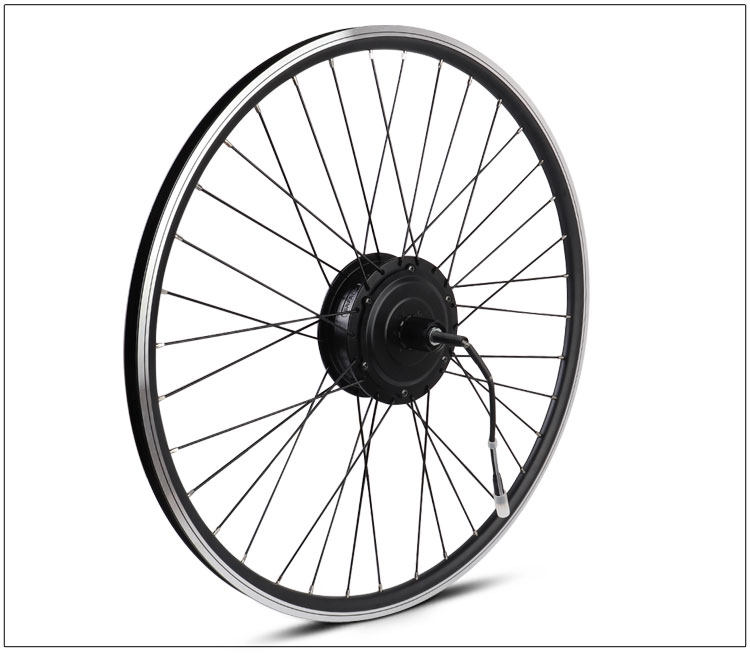

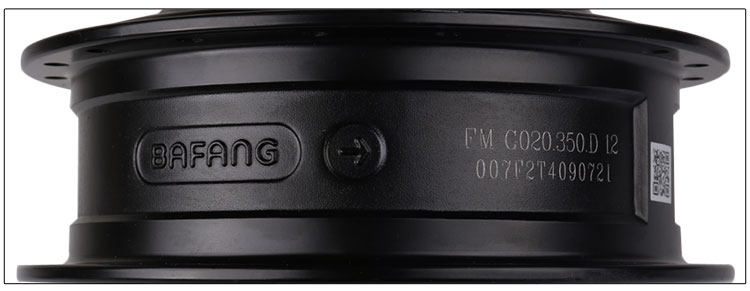

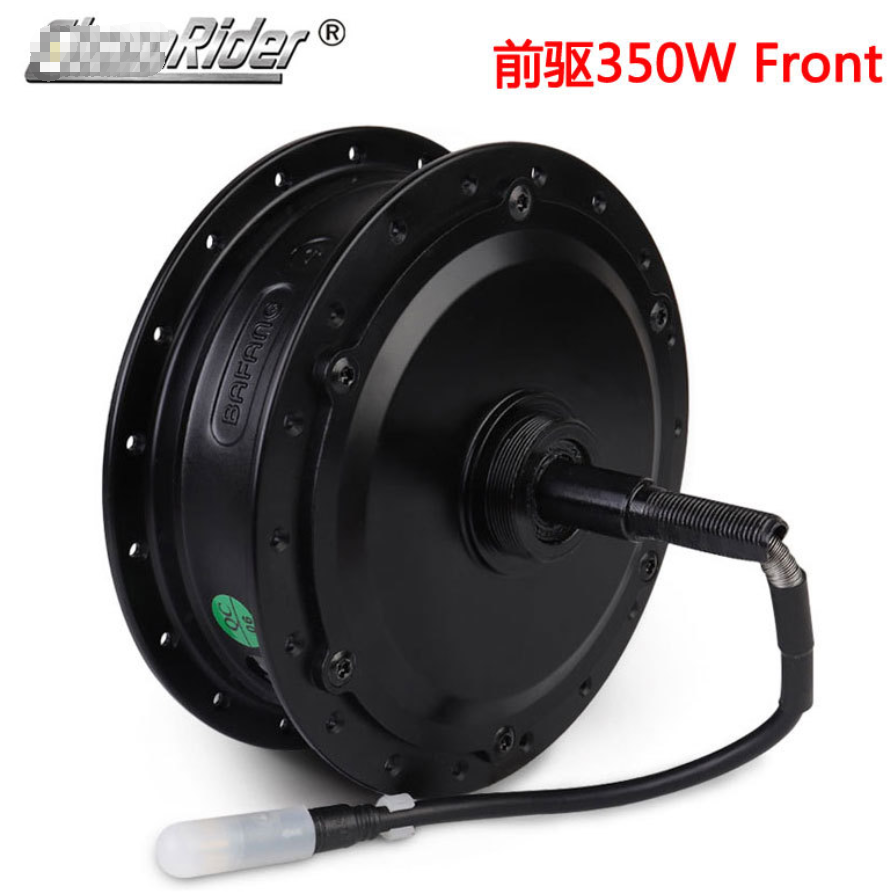

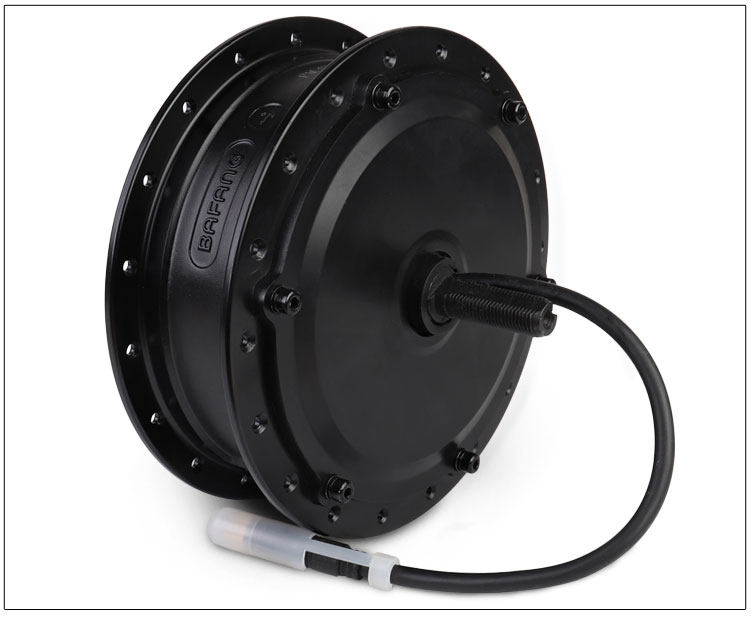

Front Motor

Core Data
Position	Front Motor

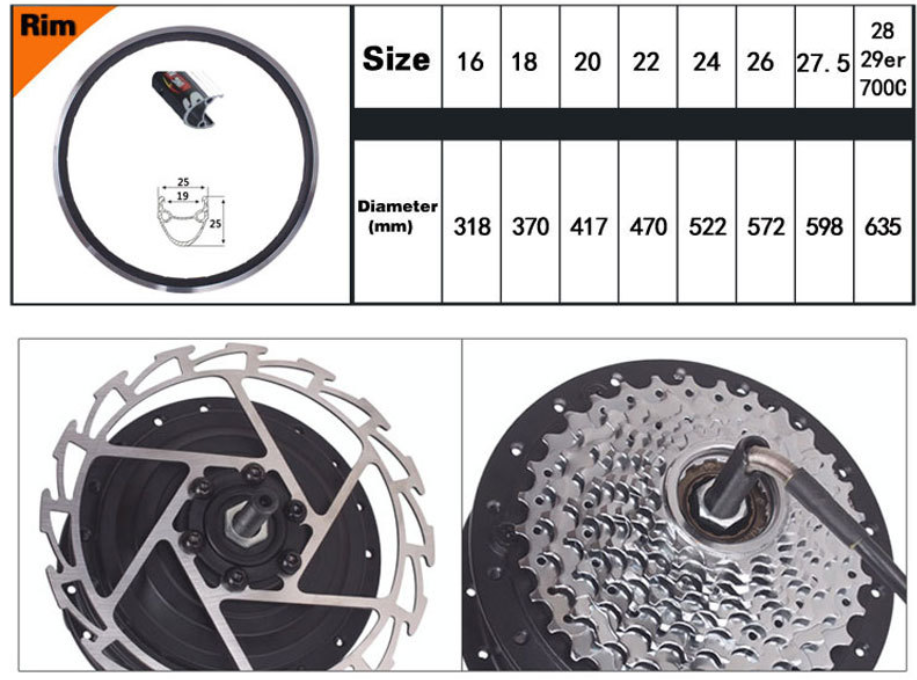

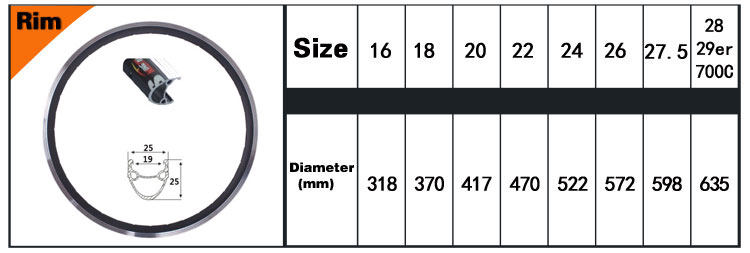

Wheel Diameter (Inch)	16/18/20/22/24/26/27.5/28（700C 29er）
Construction	Gear drive
Rated Voltage (DCV)	36/43/48
n0 (Rpm)	36V 350W:312 ; 48V 350W:352;
Rated Power (W)	350
nT(Rpm)	290 ; 205
Max Torque	45 N.m
Efficiency (%)	≥ 80
Color	Black
Weight (kg)	3.3
Noise Grade (dB)	＜55
Operating Temperature	-20 - 45℃

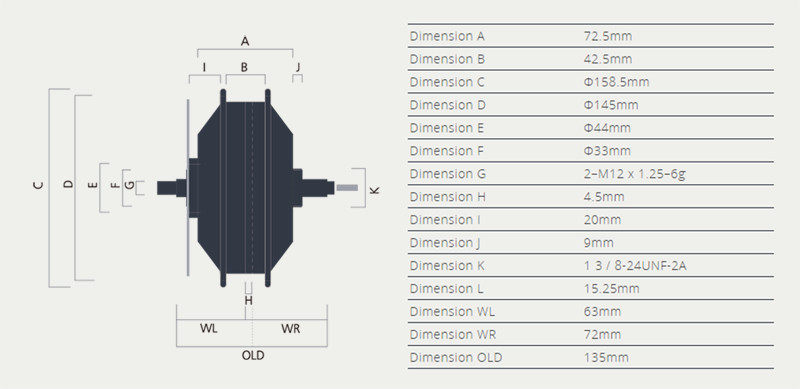

Mounting Parameters
Brake	Disc Brake
Installation Widths (mm / OLD)	100
Max. Housing Diameter (mm)	158.5
Cabling Route	Shaft Dide, Right

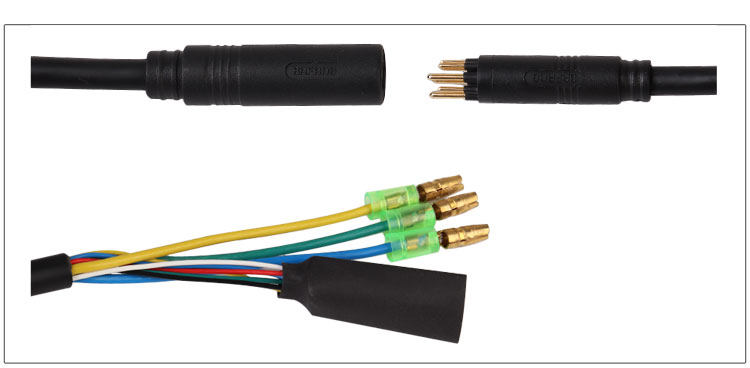

Cable Length(mm), Connection Type	250 G9.1
Spoke Specification	*36H13G**
Further Specifications
Speed Detection Signal (Pulses/Cycle)	6
Reduction Ratio	1:5
Magnet Poles (2P)	20
Tests & Certifications
IP	IP 65
Certifications	ROHS / CE
Salt Spary Test Standard(h)	96

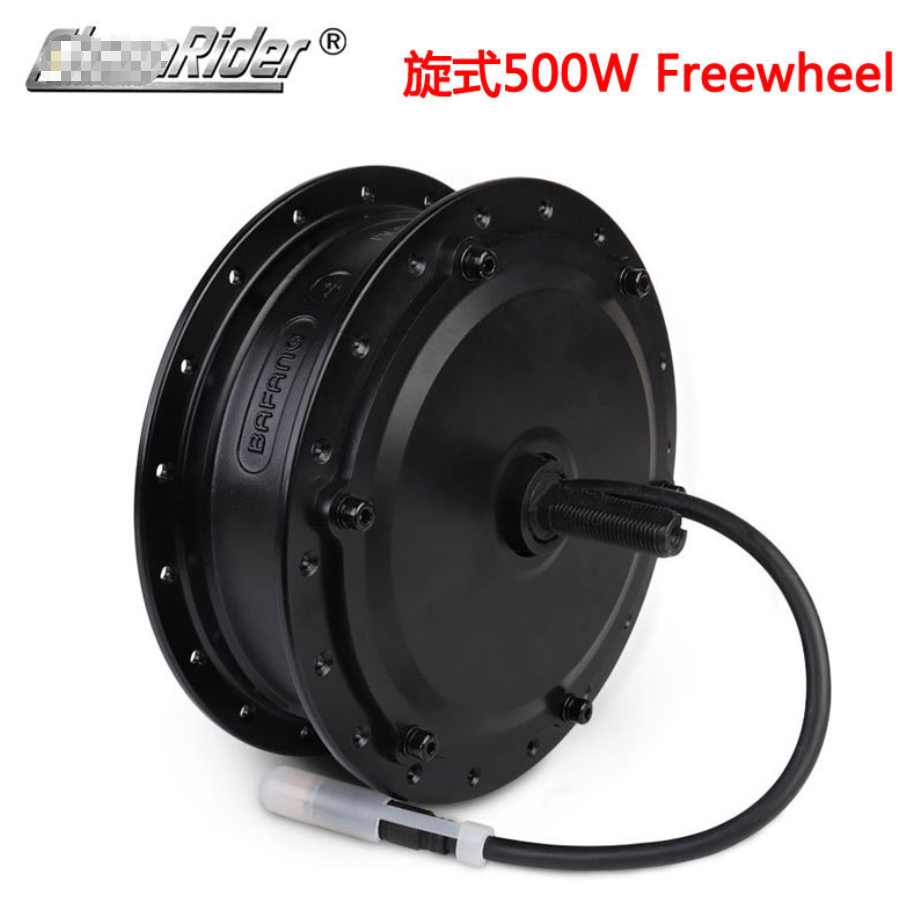

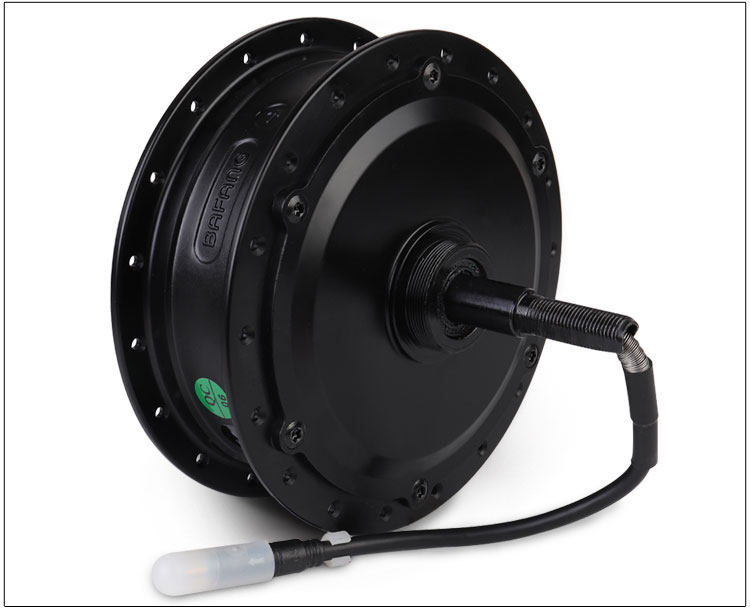

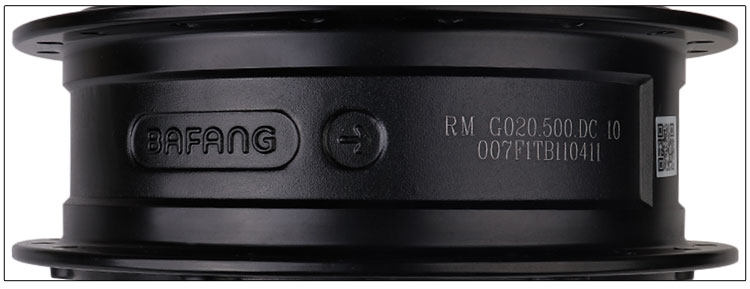

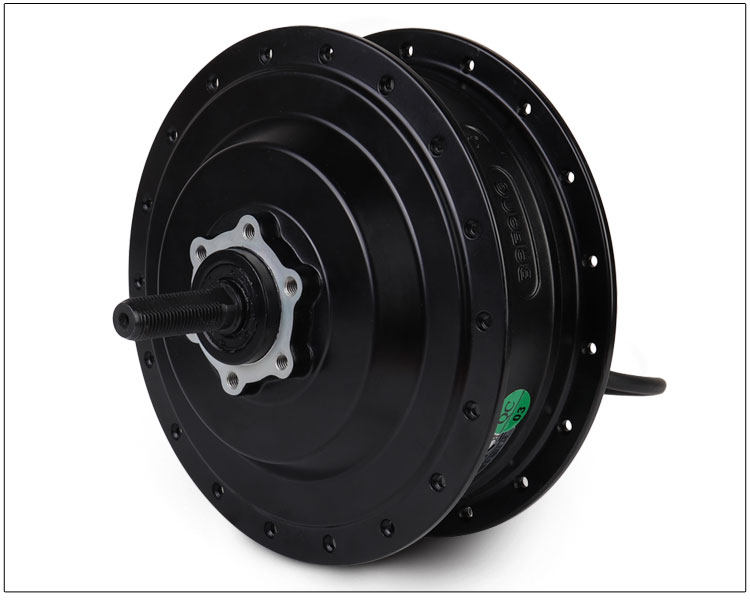

Freewheel

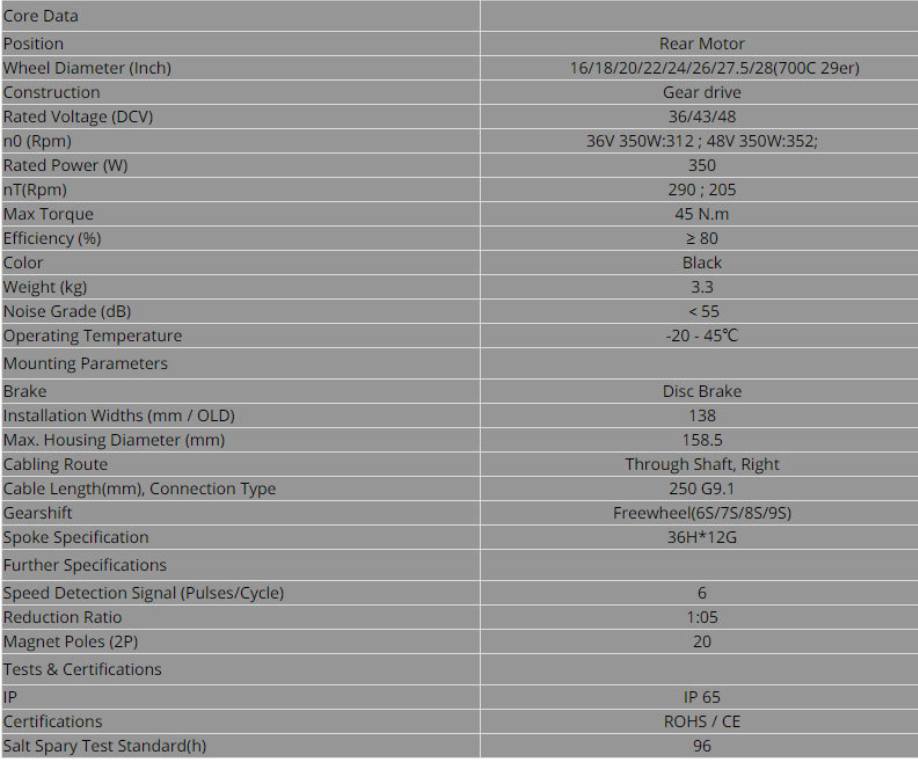

Core Data
Position	Freewheel Motor
Wheel Diameter (Inch)	16/18/20/22/24/26/27.5/28（700C 29er）
Construction	Gear drive
Rated Voltage (DCV)	36/43/48
n0 (Rpm)	325 ; 245
Rated Power (W)	350
nT(Rpm)	290 ; 205
Max Torque	45 N.m
Efficiency (%)	≥ 80
Color	Black
Weight (kg)	3.3
Noise Grade (dB)	＜55
Operating Temperature	-20 - 45℃
Mounting Parameters
Brake	Disc Brake
Installation Widths (mm / OLD)	138
Max. Housing Diameter (mm)	158.5
Cabling Route	Through Shaft, Right
Cable Length(mm), Connection Type	250 G9.1
Gearshift	Freewheel(6S/7S/8S/9S)
Spoke Specification	*36H12G**
Further Specifications
Speed Detection Signal (Pulses/Cycle)	6
Reduction Ratio	1:05
Magnet Poles (2P)	20
Tests & Certifications
IP	IP 65
Certifications	ROHS / CE
Salt Spary Test Standard(h)	96
