BAFANG BBSHD 1000W 52V Mid Drive E-Bike Conversion Kit | 68MM Bottom Bracket with Display Options & 20Ah Battery | High-Power Electric Mountain Bike Motor Kit

[BAFANG BBSHD CAN-BUS Mid-Drive System]

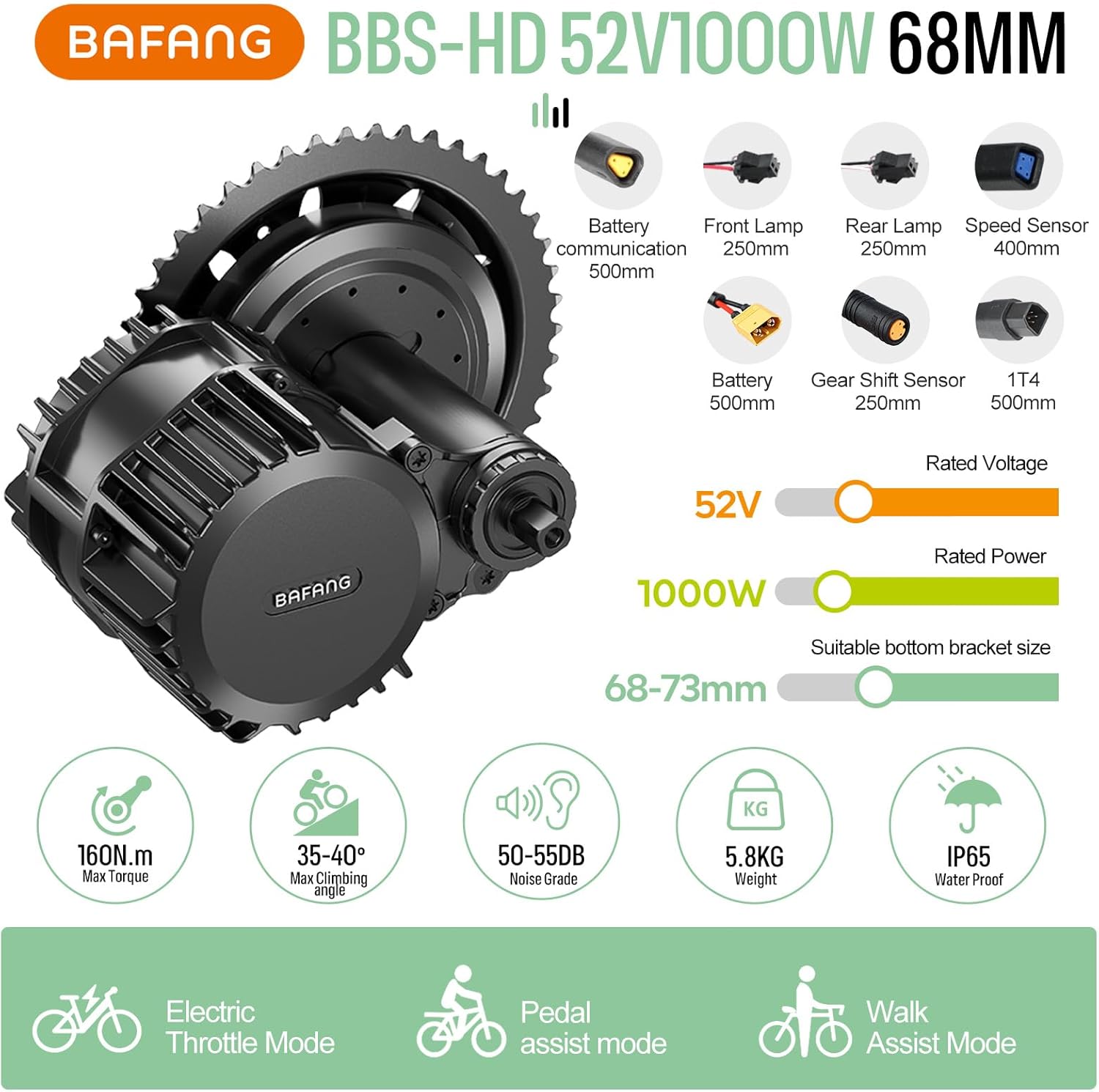

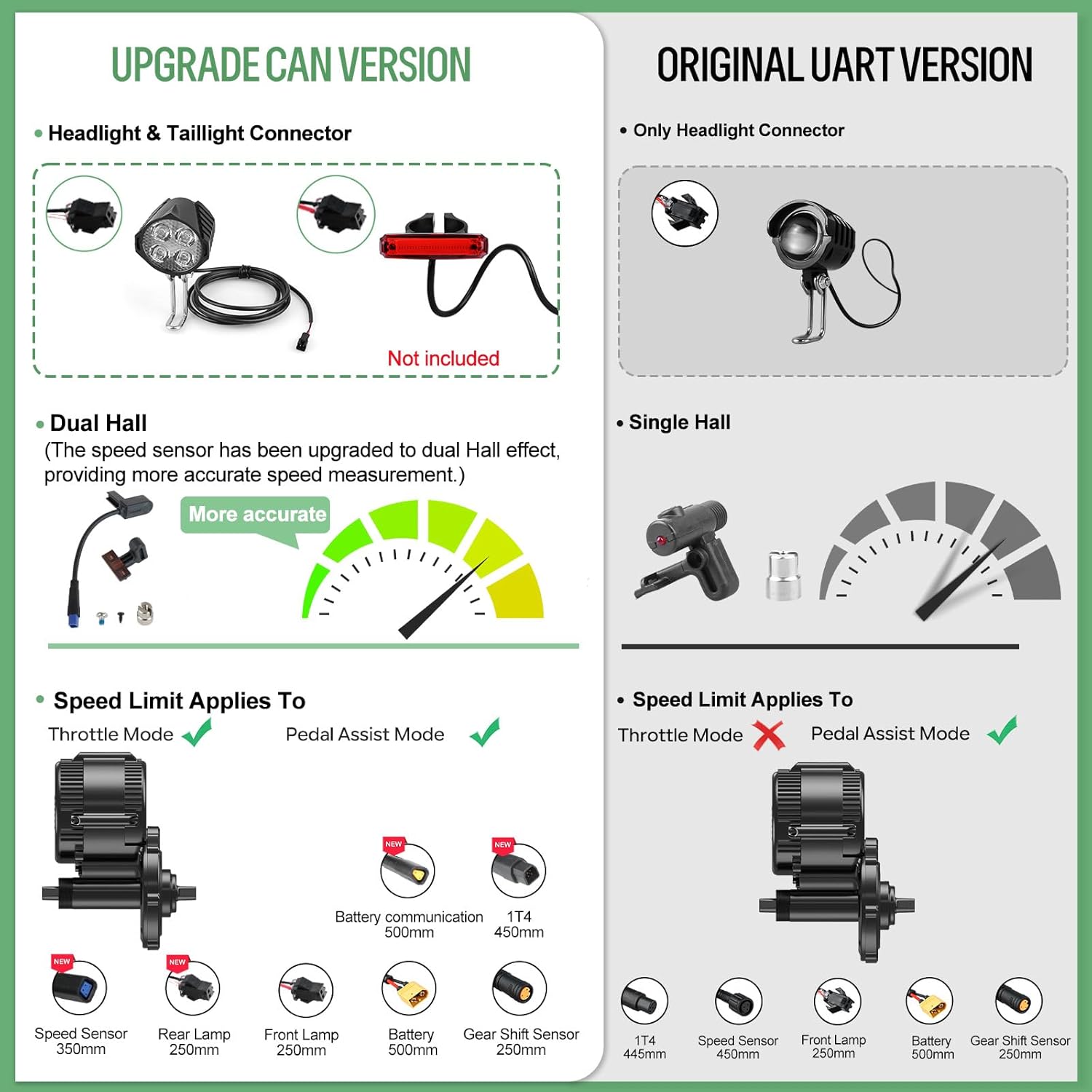

Experience next-level performance with the BAFANG BBSHD, a 52V 1000W CAN-BUS mid-drive motor delivering 160 N.m of torque. This upgraded system features enhanced current stability, a dual Hall speed sensor for precise control, and built-in battery communication (requires a compatible communication-capable battery). An integrated taillight/brake light connector adds both safety and convenience, culminating in a superior ride experience.

[Versatile Compatibility & Installation]
Designed for broad compatibility, this kit fits standard bottom bracket shells measuring 68-73mm with an inner diameter of 33.5-36mm. It is an ideal high-power conversion solution for mountain bikes, road bikes, and commuter bicycles. Important Note: This kit is not suitable for use with carbon fiber frames or bicycles equipped with pedal/coaster brakes due to frame stress and torque limitations.

[Customizable CAN-BUS Display Options]

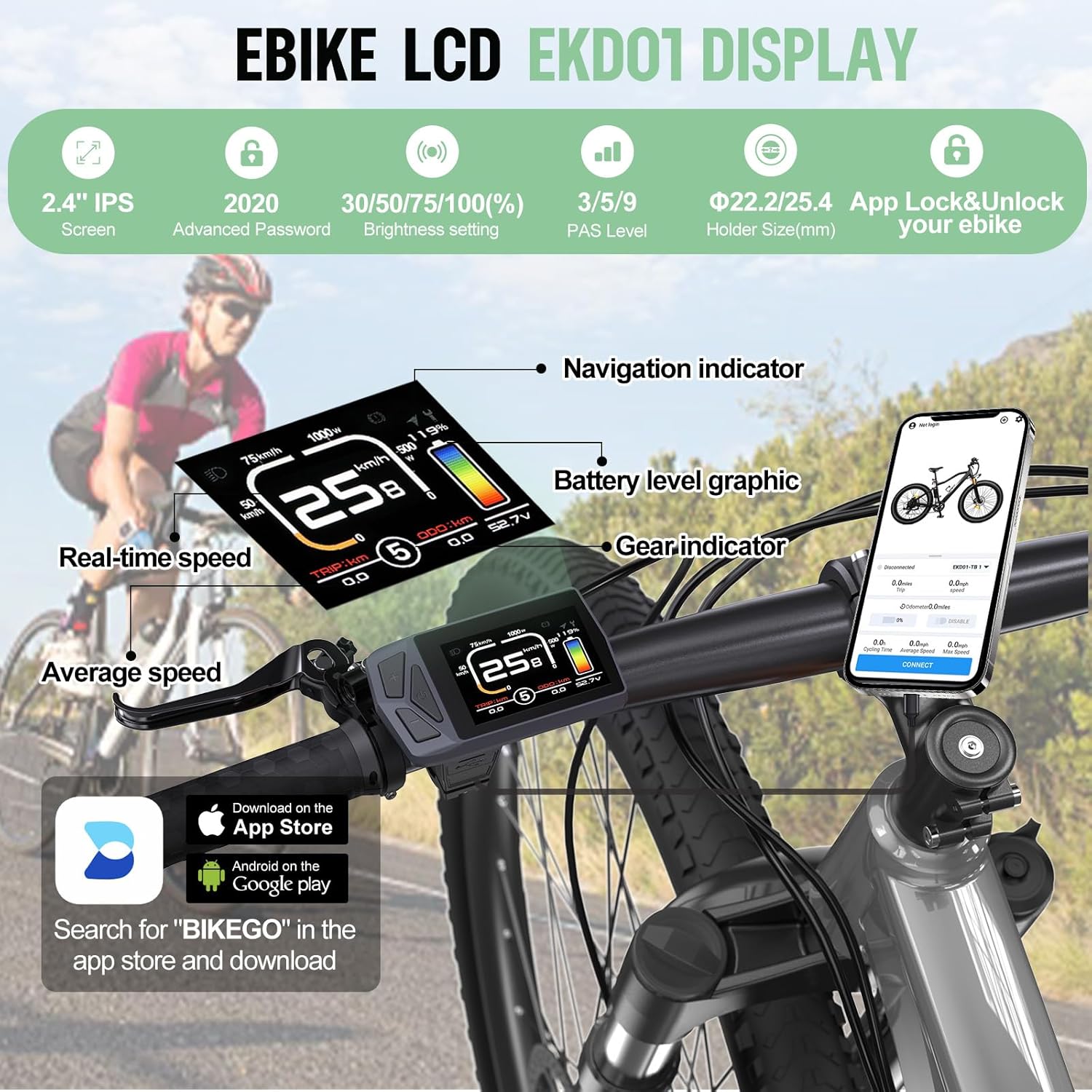

Personalize your ride interface by selecting from a suite of advanced CAN-BUS displays, including the VD03, EKD01, VD618, VD61, BAFANG DPC010, and DPC080. BAFANG's proprietary displays (DPC010/080) offer the added benefit of on-display motor parameter adjustment via the BAFANG GO+ app, eliminating the need for a separate USB programming cable.

[High-Capacity Battery & Safety]

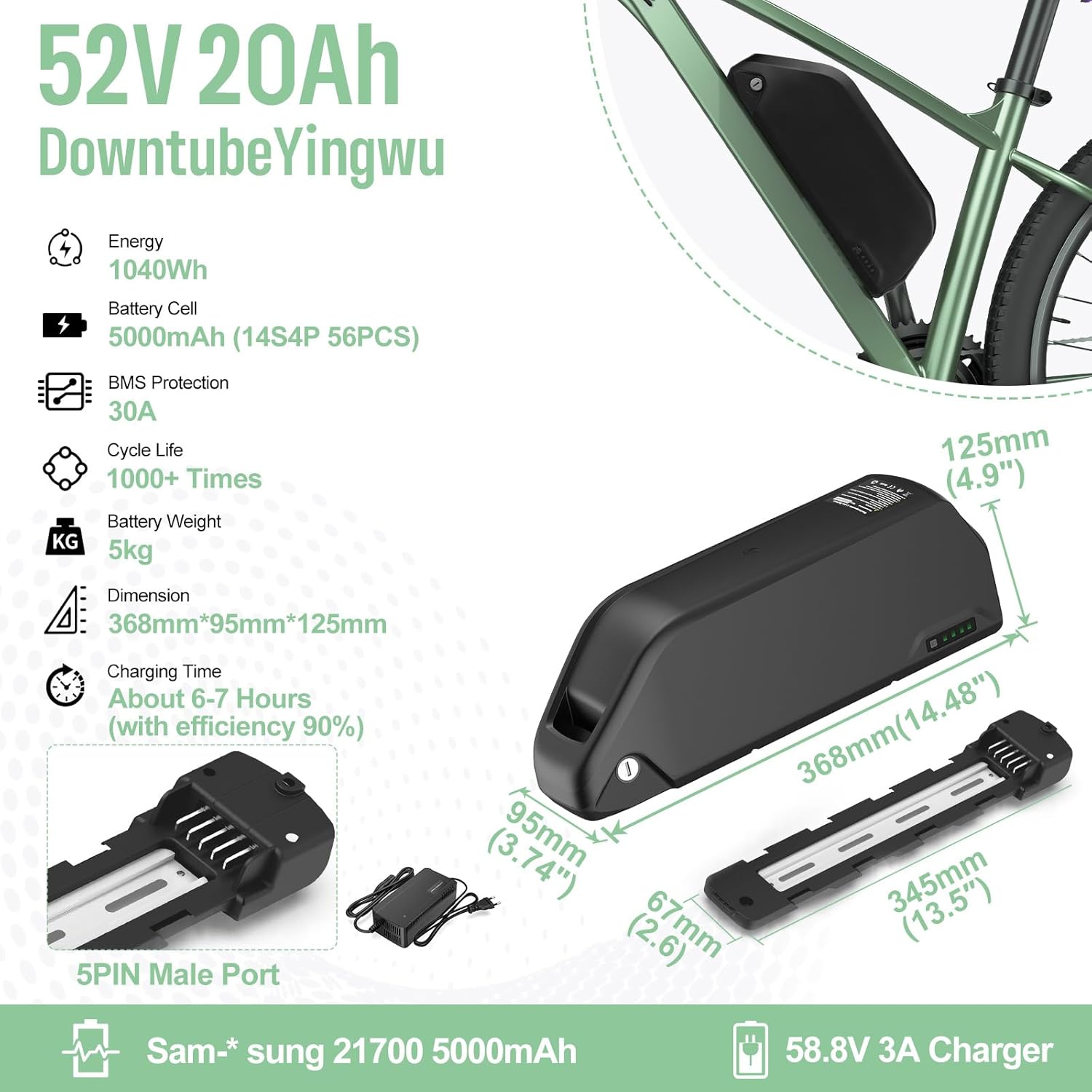

The kit includes a high-performance 52V 20Ah Yingwu lithium battery with a built-in 30A BMS for comprehensive protection. It is paired with a 3A, 58.8V smart charger. For optimal safety and theft prevention, always ensure the battery's physical safety lock is engaged before powering on. With a lifespan of approximately 800-1000 cycles (dependent on usage and storage), proper care is essential—avoid storing in high-temperature environments.

[Complete Conversion Package]

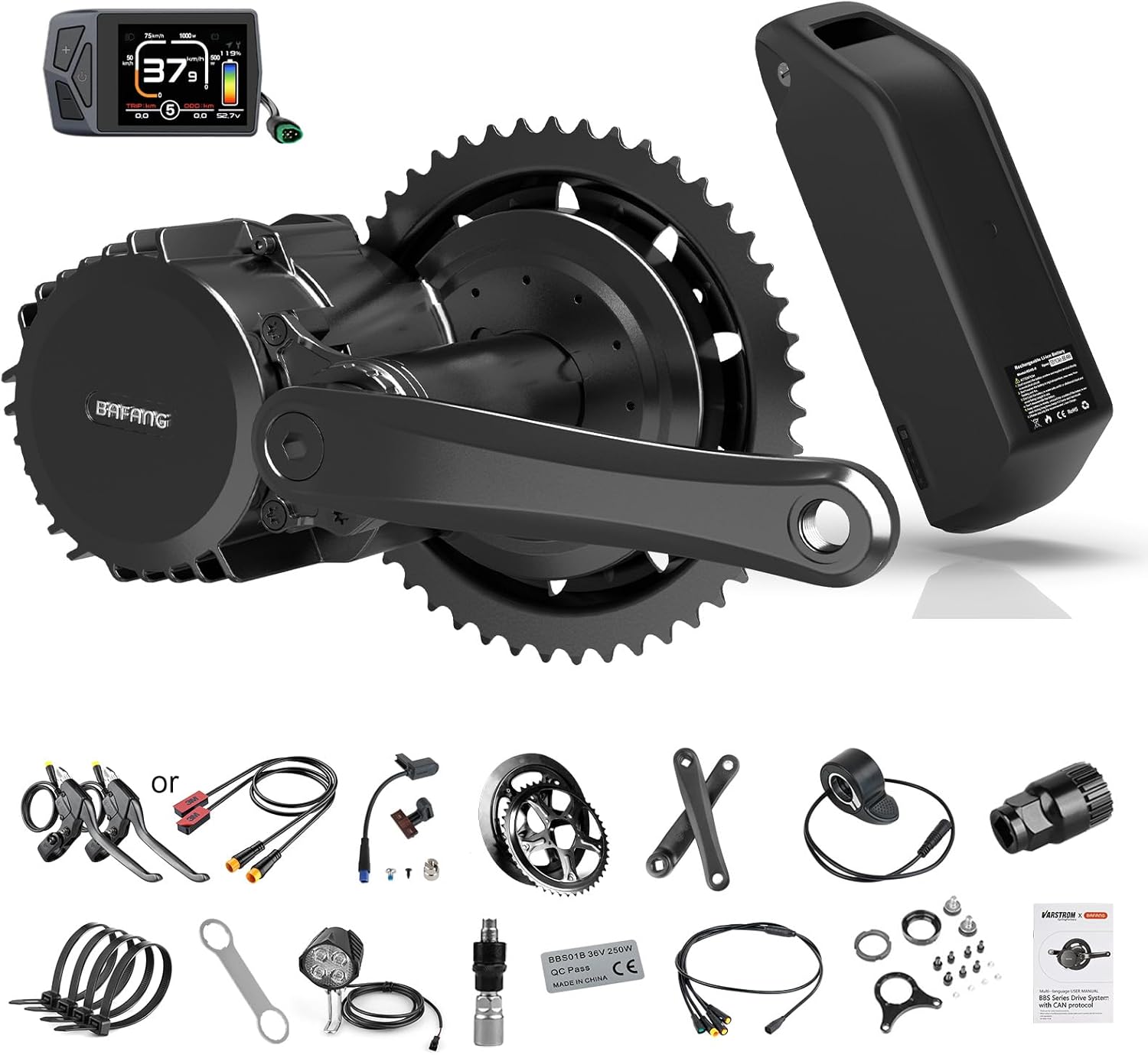

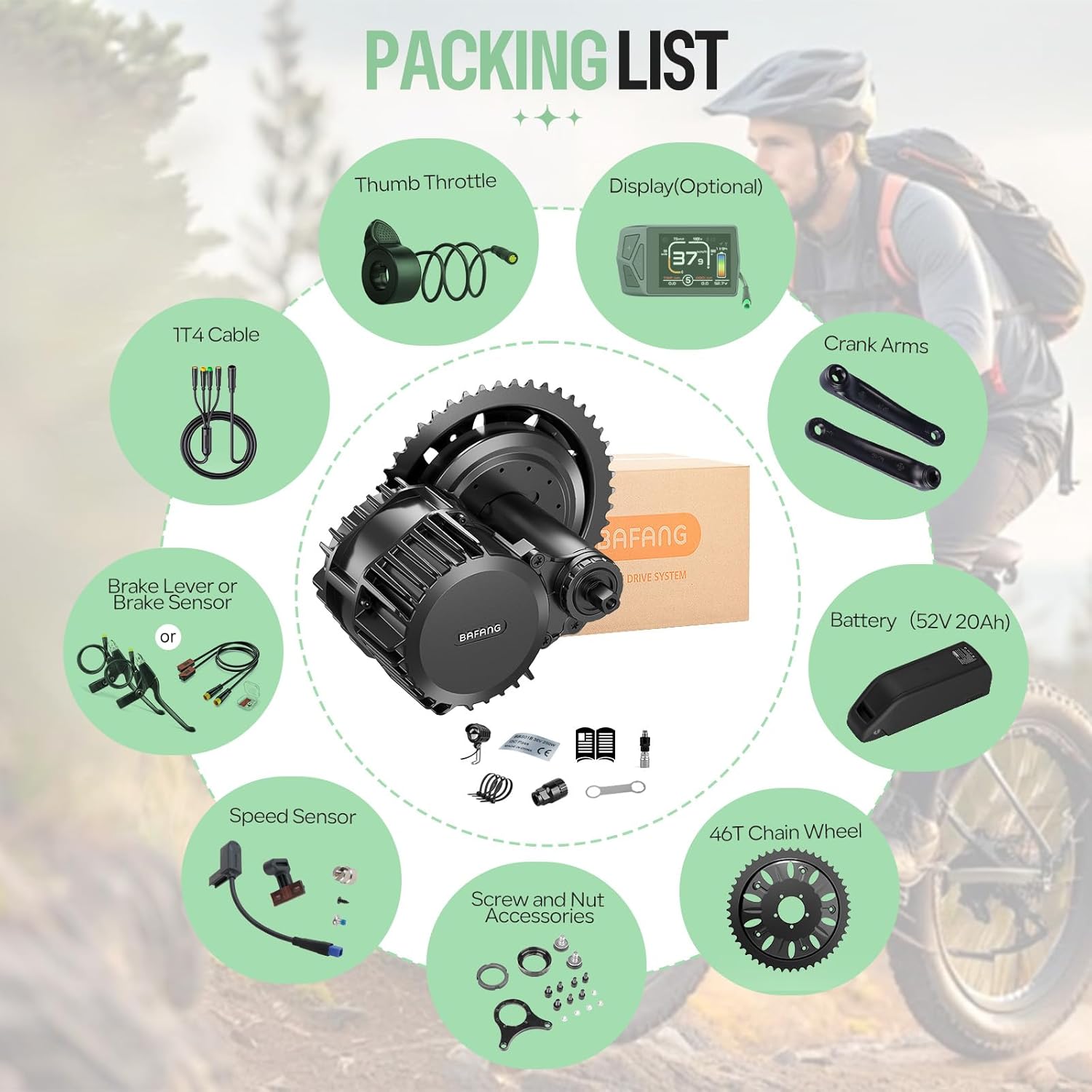

Your all-in-one package contains: 1x BAFANG 52V 1000W CAN-BUS BBSHD Mid-Drive Motor, 1x Selected Display, 1x 46T Chainring, 1x Dual Hall Speed Sensor & Magnet, 1x Set of Brake Levers/Sensors, 1x Set of Cranks, 1x 1T4 EB-BUS Cable, 1x Thumb Throttle, 1x Lock Nut Set, 1x Installation Toolkit, and 1x Headlight. Designed for straightforward assembly. Should any component be missing, please contact us immediately for resolution.
