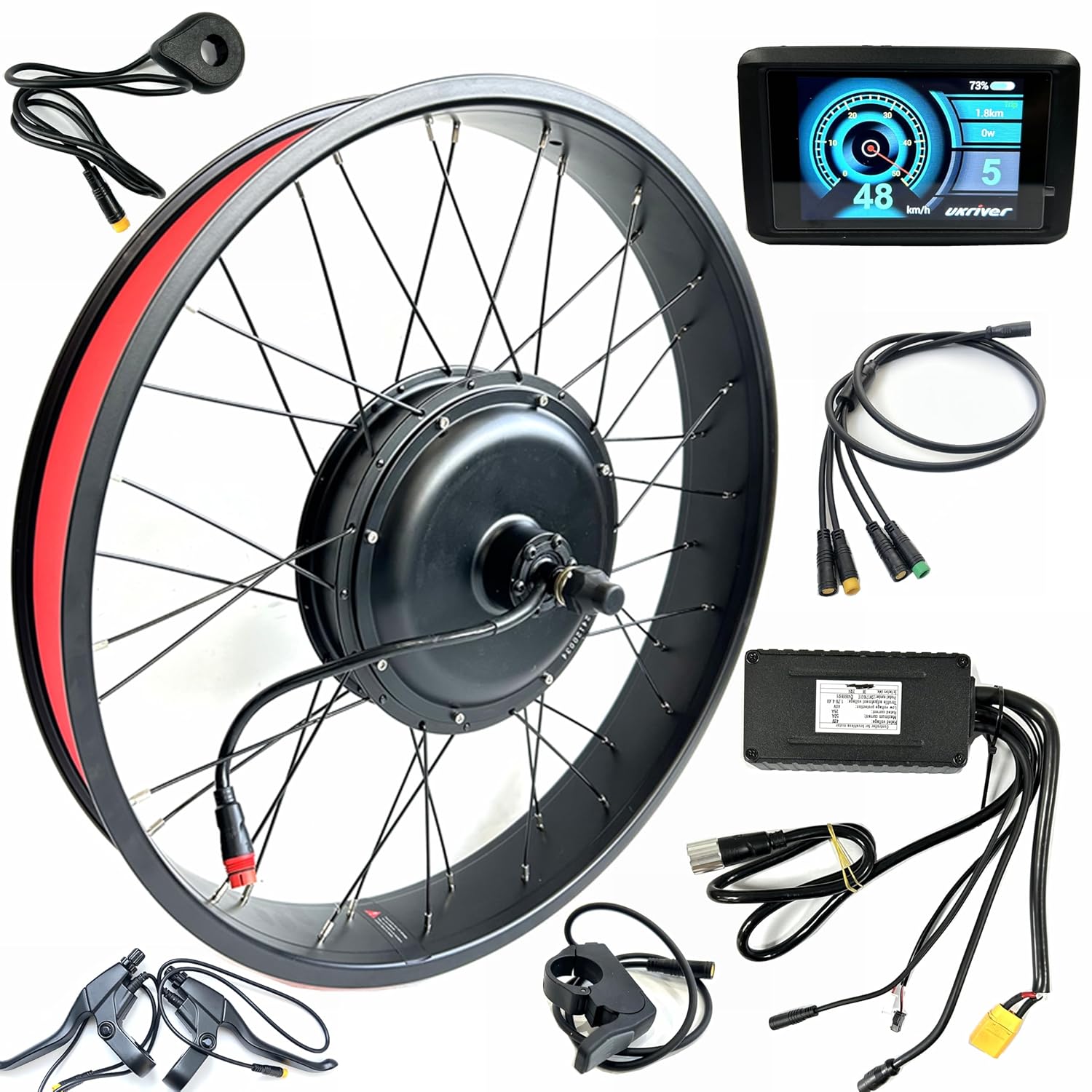

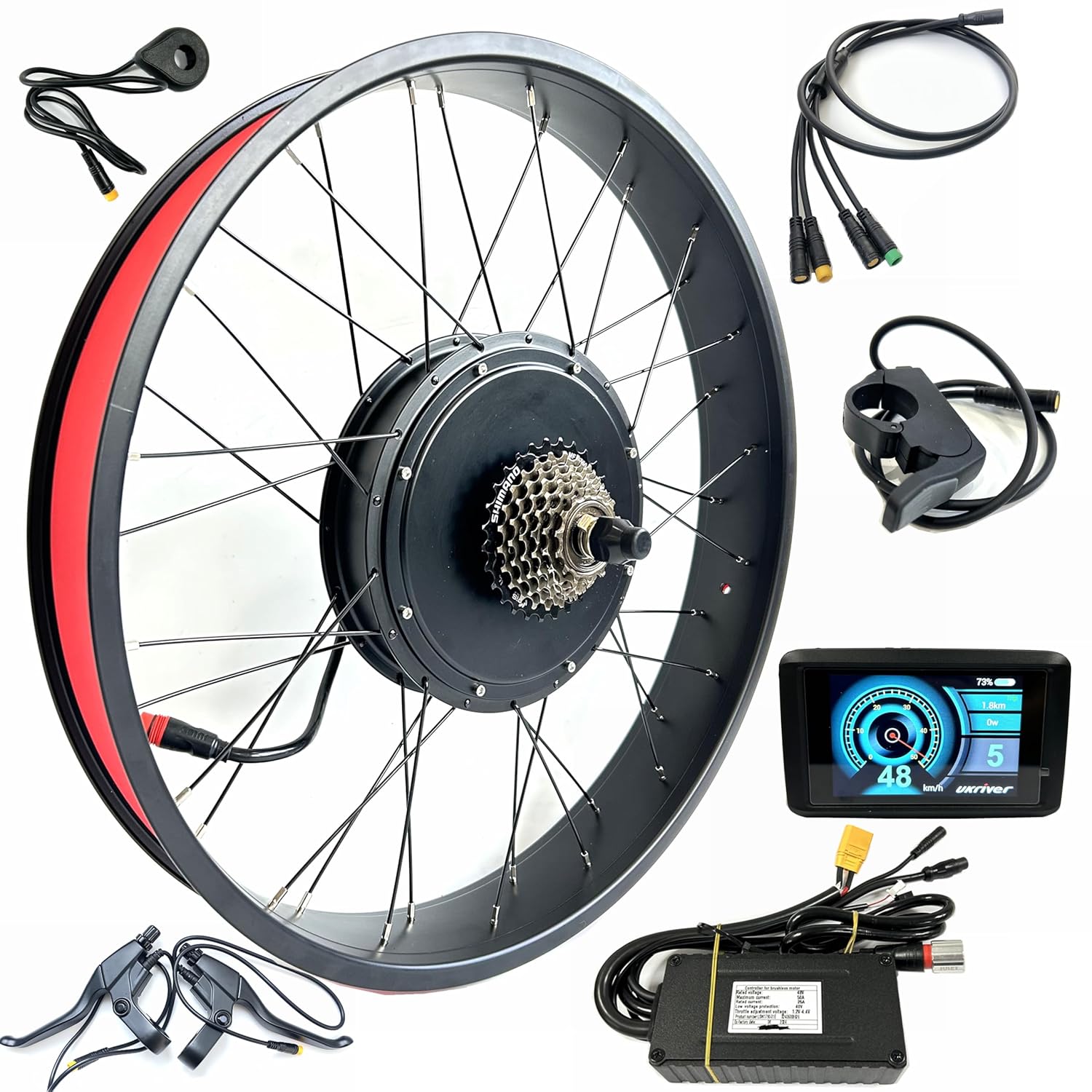

48V 2000W Fat Tire Electric Bike Conversion Kit - Rear Hub Motor with TFT Display

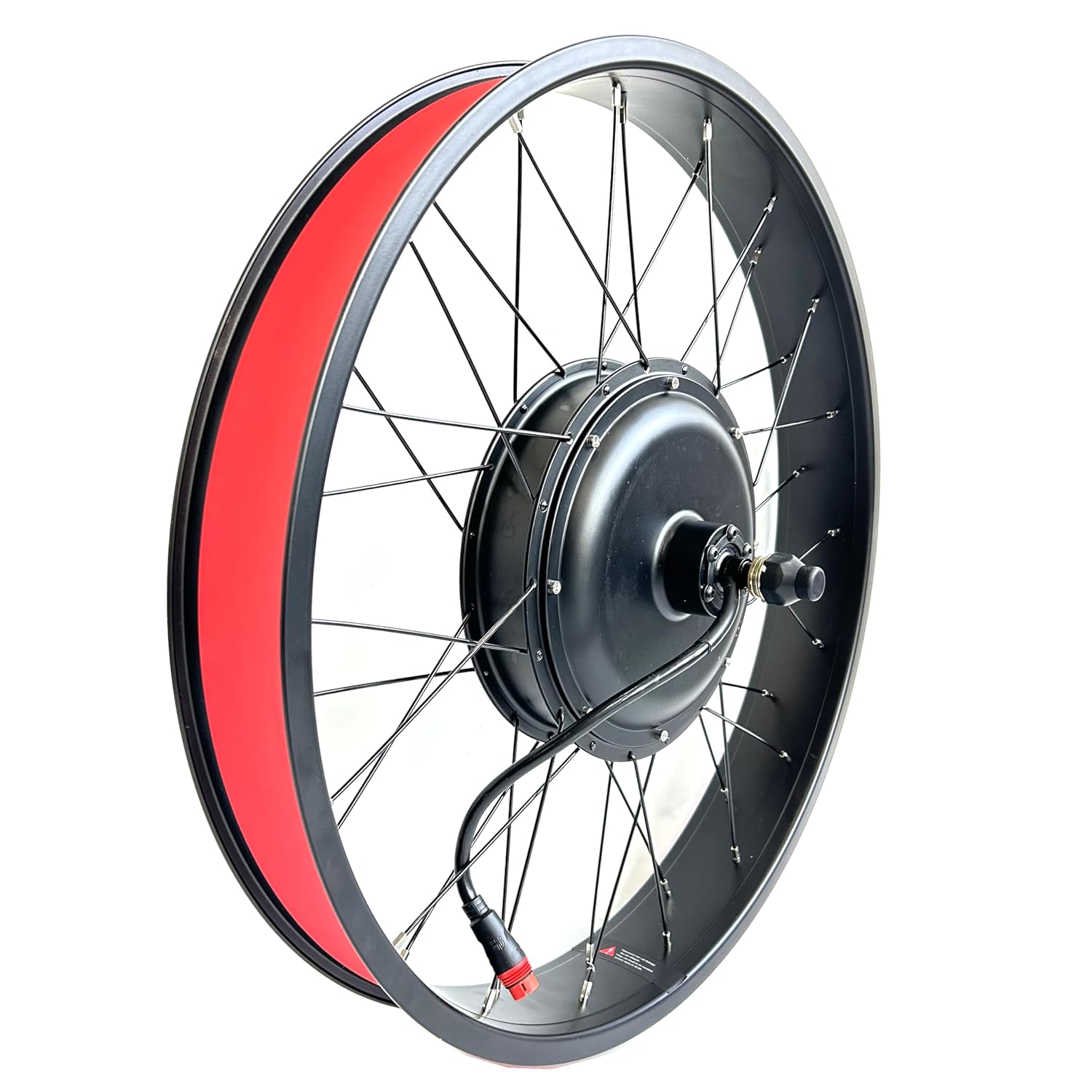

Motor & Wheel Assembly:

• Motor: 48V 2000W rear hub motor, designed for 170mm dropout spacing.

• Wheel: Pre-laced to a double-wall 26-inch fat bike rim, compatible with 26" x 4.0" tires.

• Gearing: Equipped with a 7-speed freewheel for versatile riding.

• Performance: Capable of reaching a maximum speed of ~55 km/h (~34 mph).

Controller Specifications:

• Rating: 48V 2000W controller with a rated current of 25A and a peak current of 50A.

• Dimensions: Compact size: 135mm (L) x 69mm (W) x 33mm (H).

• Connections: Features an XT90 male power connector and a screw-locking motor connector for secure assembly.

• Battery Requirement: Requires a battery equipped with a minimum 50A BMS to match the controller's peak draw.

Durability & Protection:

• Full Waterproof Design: Kit features IP66 waterproof connectors, a potted (sealed) controller, and a color TFT display for all-weather reliability.

Included for Assembly:

• Hand Tools: Crank tool and M8 hex wrenches are included to facilitate installation.
