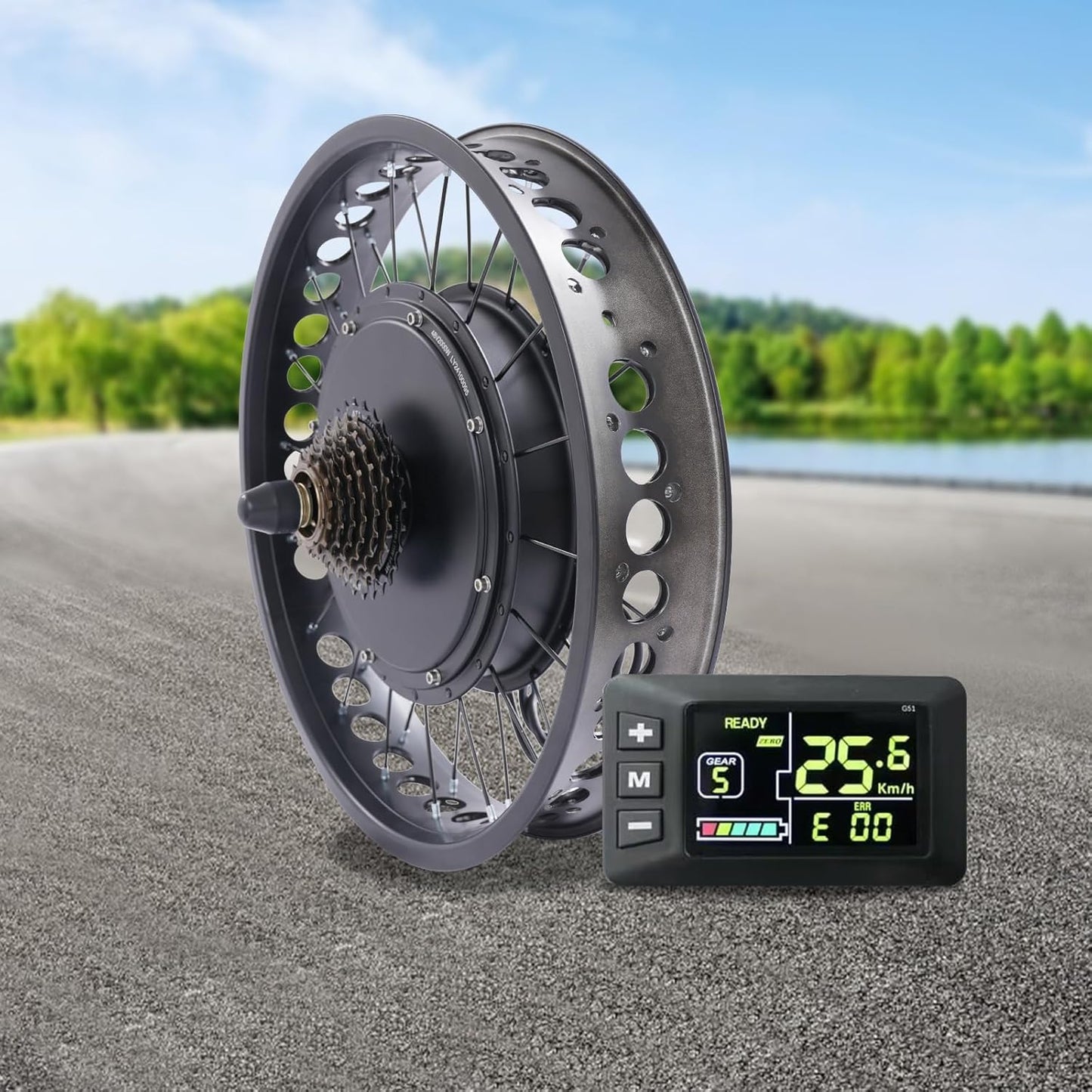

20 Inch Fat Tire Electric Bike Conversion Kit | 48V 2000W Rear Hub Motor with LCD Display
20 Inch Fat Tire Electric Bike Conversion Kit | 48V 2000W Rear Hub Motor with LCD Display
Couldn't load pickup availability
Premium Materials: Crafted from high-grade aluminum alloy and steel, this product undergoes baking paint and spray molding treatments for enhanced durability. The result is a rustproof, scratch-resistant, and abrasion-resistant finish that maintains structural integrity—reducing deformation and extending product life.

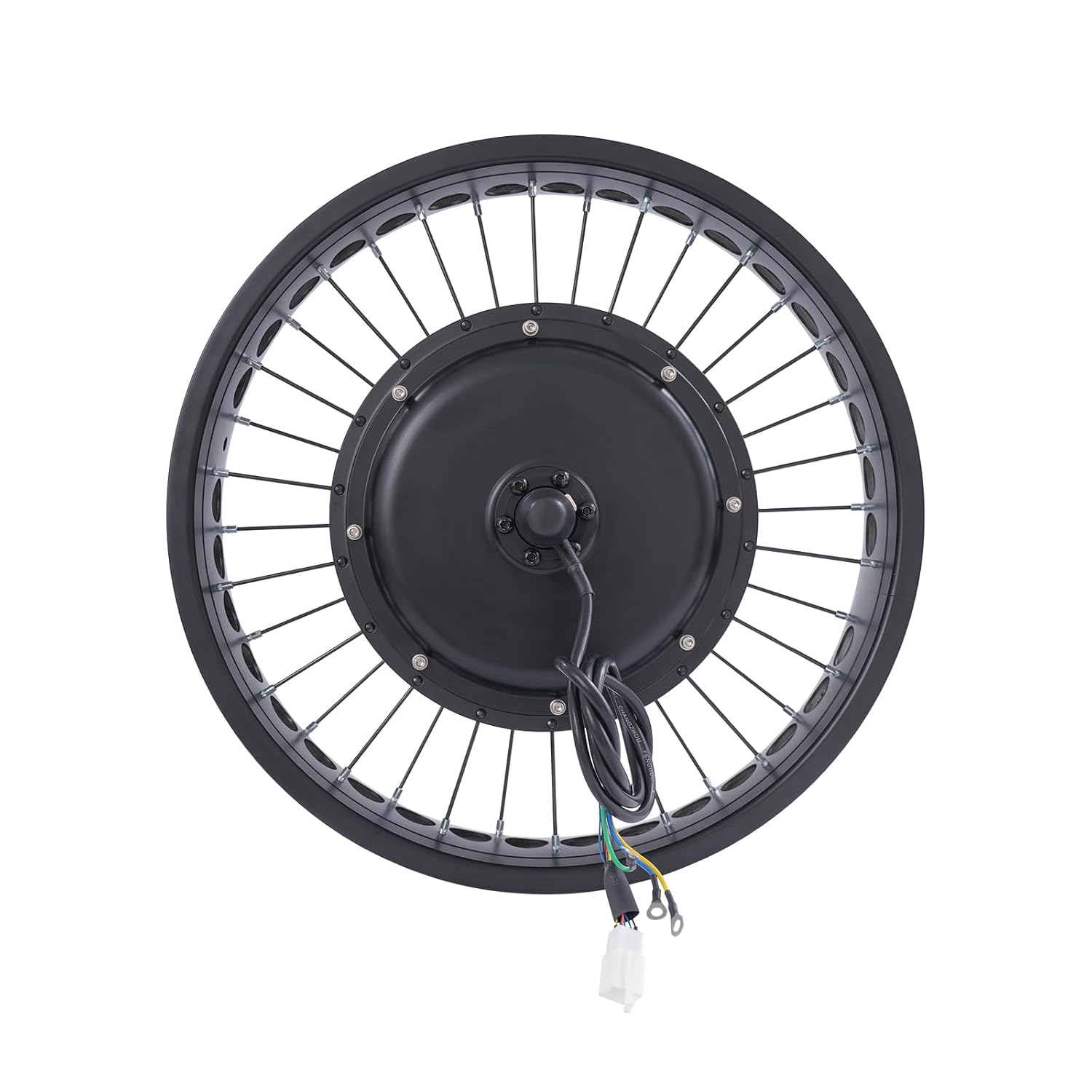

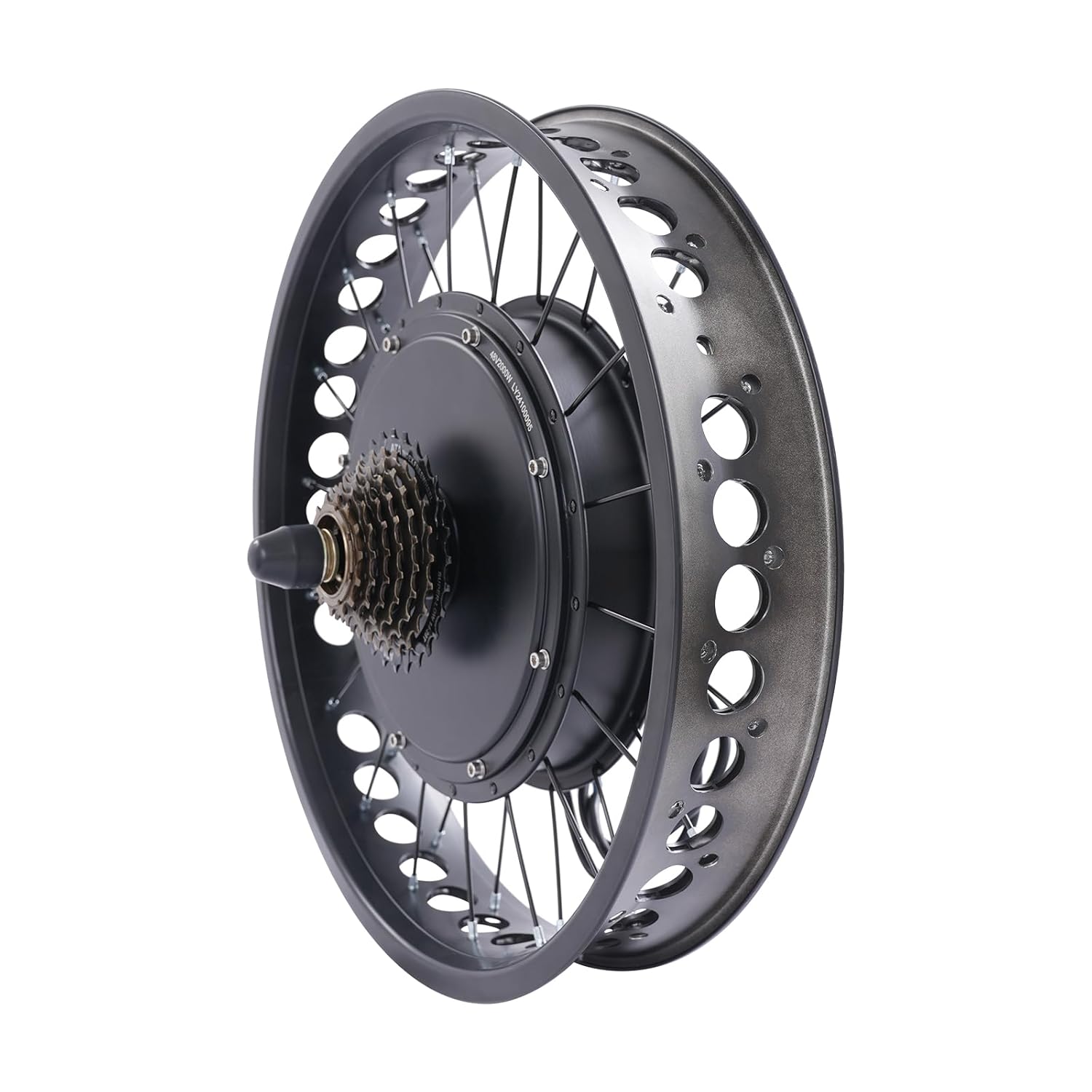

High-Torque 2000W Brushless Hub Motor: Experience powerful acceleration and climbing performance with an advanced brushless, gearless hub motor. Generating 65N·M of torque and speeds up to 55km/h (34mph) at 550rpm, this 48V 2000W motor delivers reliable power across diverse terrains and cycling conditions.
Universal Fit for 20x4" Fat Tires: Designed for rear-wheel installation on 20x4 inch (50.8×10.16cm) fat tire bicycles, this hub motor features a 170mm bottom bracket and 42cm hub diameter. The kit ensures wide compatibility with most standard bike frames for easy integration.
Enhanced Safety & Quiet Operation: Includes power-off brake levers compatible with V-brakes and disc brakes for reliable, immediate stopping. Engineered for quiet operation below 55dB, the system maintains over 83% efficiency and performs reliably in temperatures from -20°C to 45°C (-4°F to 113°F).
Complete E-Bike Conversion Kit with LCD Display: This all-in-one kit contains everything needed for conversion: 1 hub motor, 1 controller, 1 thumb throttle, 2 brake levers, and 3 English manuals. The included smart LCD display allows real-time monitoring and intuitive control of your e-bike’s performance.
This product is suitable for universal, electric city bikes, electric off-road bikes, electric folding bikes, electric mini bikes, electric travel bikes, electric tricycles, etc. with wheel sizes of 20*4 inches. It is suitable for highway cycling, mountain road cycling, sand cycling, and snowfield cycling.
Specification
Color: Black
Special Feature: Electric
Material: Aluminum Alloy, Aluminum, Steel
Process: Baking Paint, Spray Molding
Installation Position: Rear
Display Type: LCD
Motor Type: Brushless and Gearless Hub Motor
Brake Type: Power-off Brake Handle (Applicable to V Brake, Disc Brake)
Working Temperature: -20-45℃/-4-113℉
Power: 2000W
Voltage: 48V
Speed: 550rpm
Torque: 65N. M
No-load Speed: 55km/34mile/h
Efficiency: ≥ 83%
Noise: ＜55dB
Suitable Bike Tire Size: 50.8*10.16cm/20*4in
Wheel Bottom Bracket: 170mm/6.69in
Wheel Hub Diameter: 42cm/ 16.54in
Wheel Hub Width: 8cm/ 3.15in
Package Size: 50*50*28cm/ 19.69*19.69*11.02in
Net Weight: 12.35kg/ 27.23 lbs
Gross Weight: 13kg/ 28.66 lbs

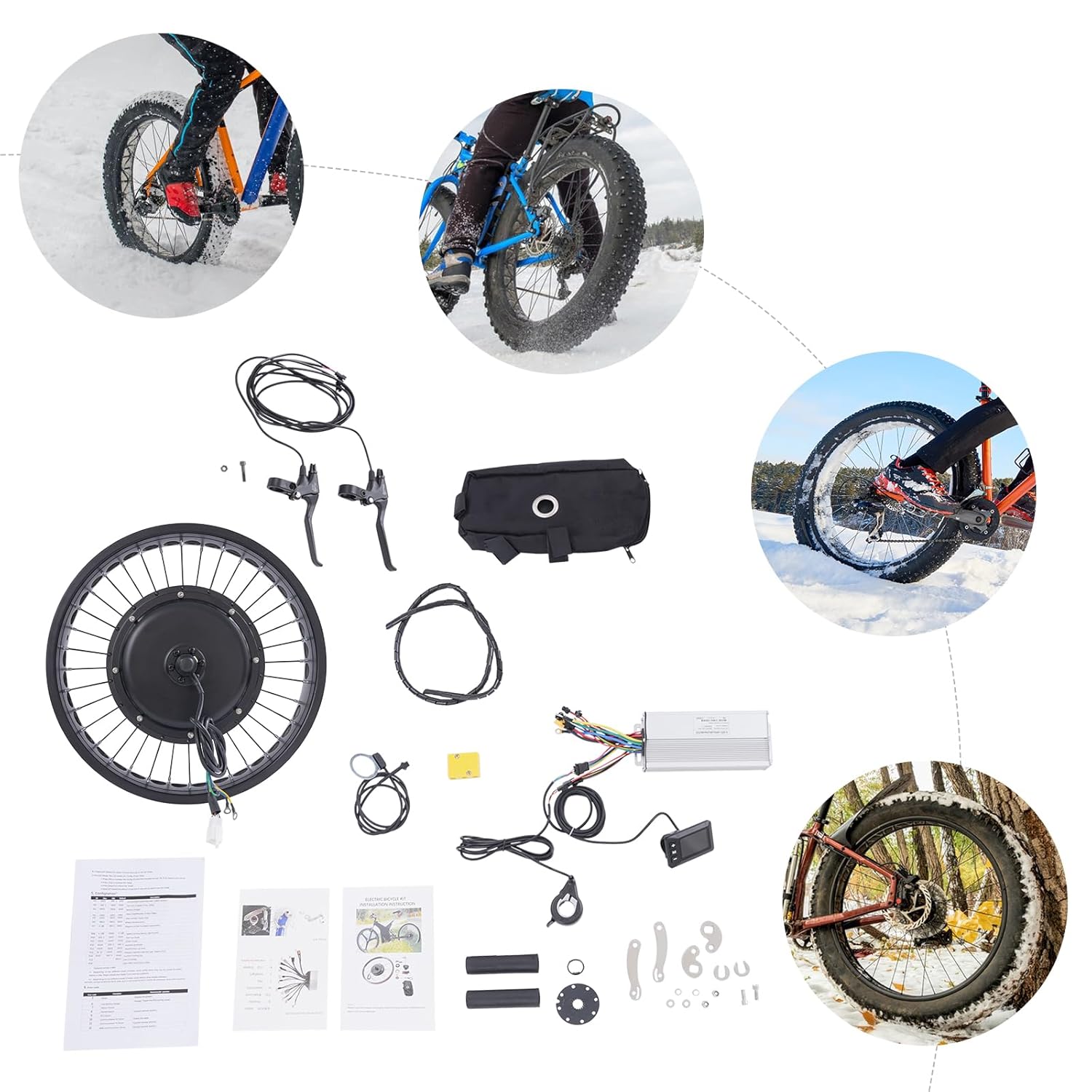

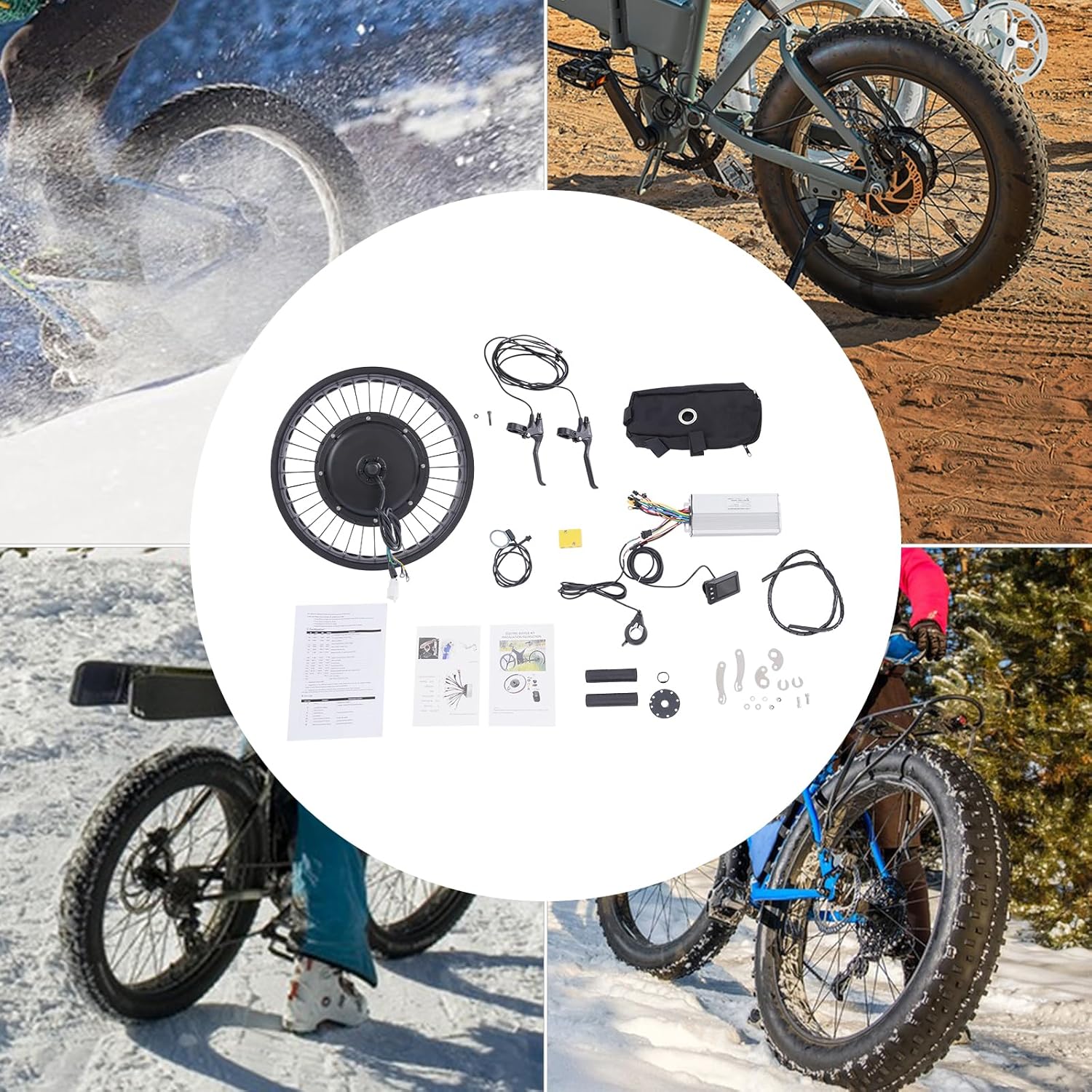

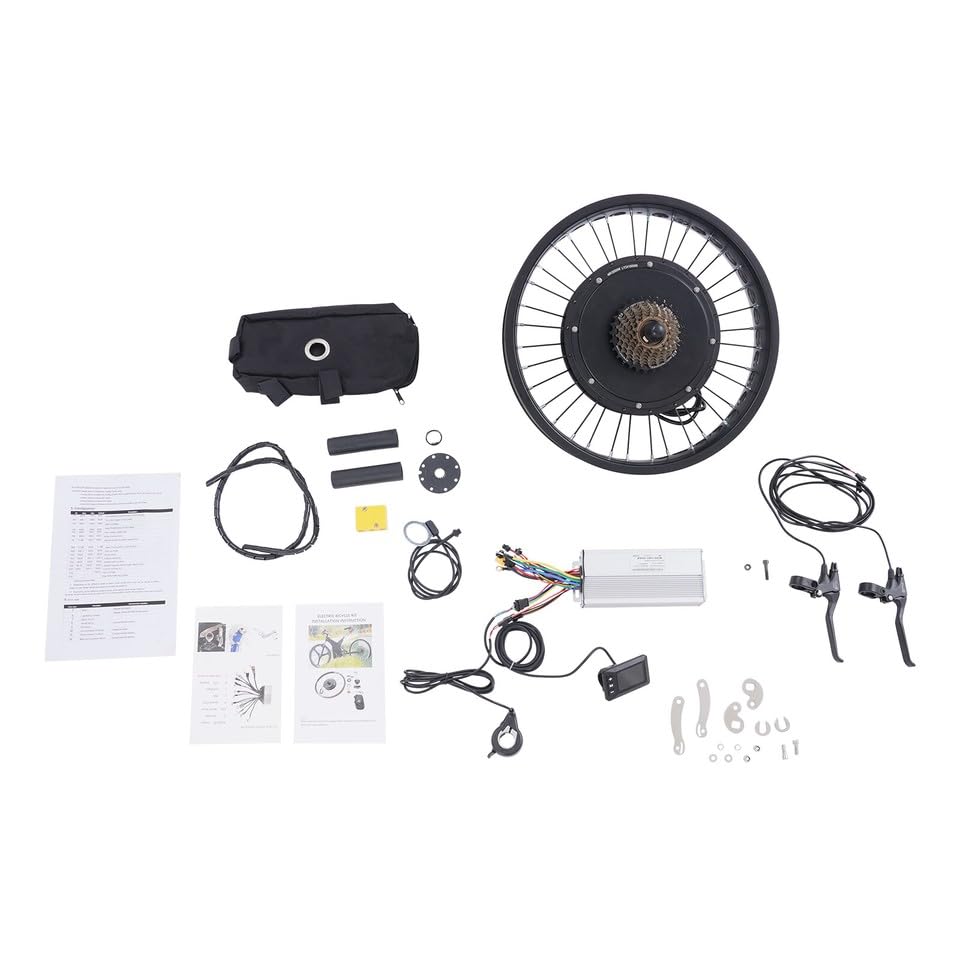

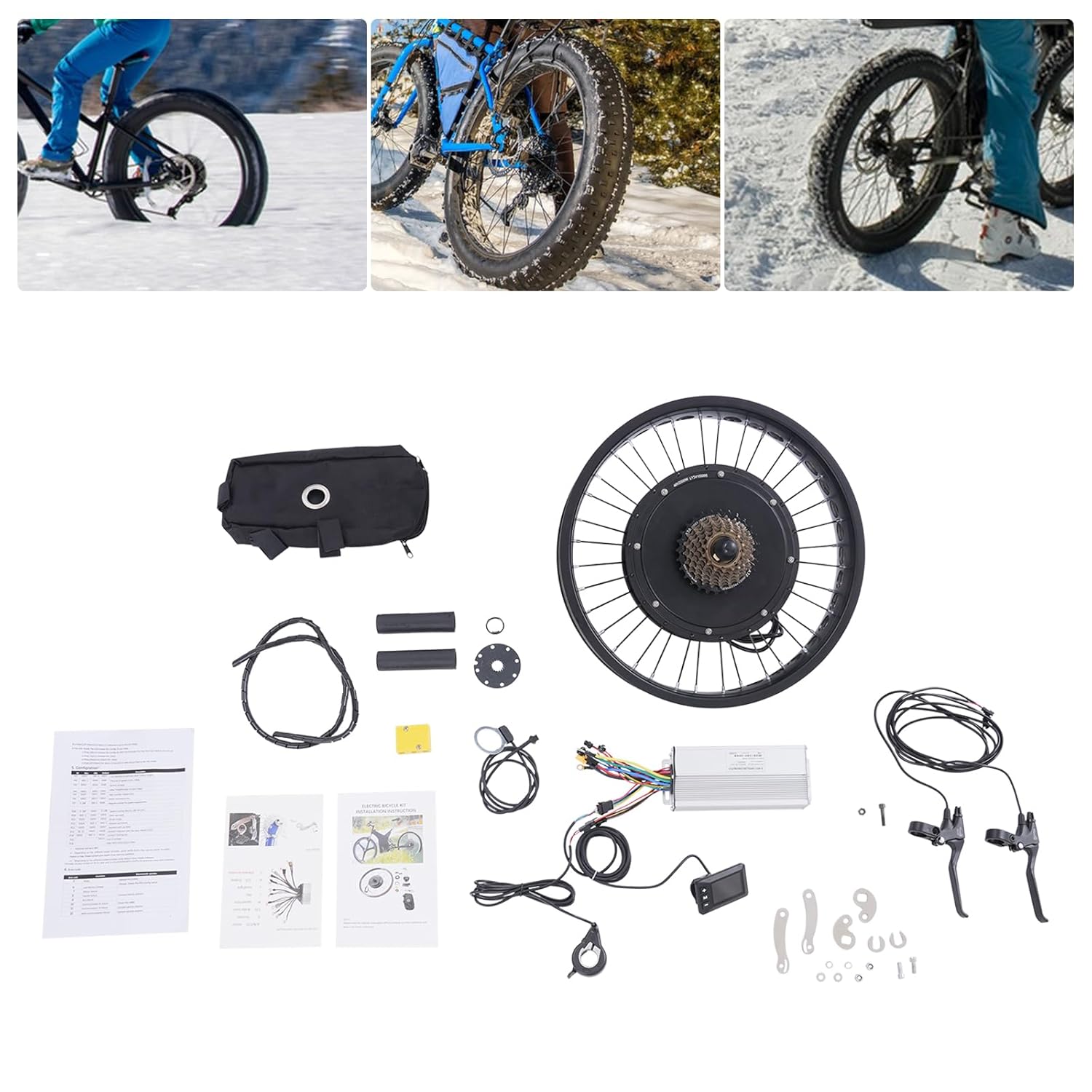

Package Included
1 * Wheel Hub Motor
1 * Controller
1 * Controller Bag
1 * LCD Display
1 * Thumb Throttle
2 * Brake Levers
3 * English Manuals
All Accessories for Assembly
Notes
1.This set does not include tires and batteries and they need to be prepared by yourself. The suitable bike tire size is 20*4in.
2.Please make sure this product is compatible with your bike before placing the order.
3.Please read the instructions carefully before use.
4.Please note that riding speed is related to road conditions, battery conditions, passenger load, wind speed, and other factors.
5.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
